YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

Place of Origin : Shanghai, China

Brand Name : Yaskawa

Packaging Details : Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot
ONE Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot packing with fumigation wooden frame, WG:305KG
Controller and other part

Supply Ability : 5 Piece/Pieces per Month

Price : negotiable

Model Number : AR700

Certification : CE

MOQ : 1 set

Product name : Industrial robot arm YASKAWA AR700 for arc welders welding robot

Function : Multifunctional

Controlled axes : 6

Max. Payload : 8kg

repeatability : ±0.02mm

Max. working range R : 727mm

Temperature : 0-45 ℃

Humidity : 20%-80%

Weight : 32kg

Power supply, average : 1KVA

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : Ordinary Product

Warranty of core components : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Gear

Warranty : 1 Year

After-sales Service Provided : Free spare parts, Field maintenance and repair service, Video technical support, Online support

After Warranty Service : Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location : United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, India, Russia, Thailand, Japan, South Korea

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction works , Energy & Mining, Advertising Company

Showroom Location : Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Indonesia, India, Mexico, Russia, Spain, South Korea, Bangladesh, Nigeria, Japan, Malaysia, Australia

Port : Shanghai

Contact Now

Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot

The compact MOTOMAN AR700 arc welding robot provides high path accuracy and great stability.

With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate arc welding of small workpieces with high-quality results.

Supporting the full range of the well known MOTOMAN welding functionality, AR700 robots offer a good alternative to our collaborative welding robots when batch sizes are larger or short cycle times are required.

The compact AR700 arc welding robot provides high path accuracy and great stability.

With a payload of up to 8 kg and a working range of 727 mm this robot enables accurate welding of small workpieces with high-quality results.


Main Specifications:

Model:AR700
Maximum reach:727mm
Maximum payload:8kg
Pose repeatability:± 0.02mm
Number of axes:6
Weight:32kg

Key Benefits:

1. Streamlined arm design is easy to maintainand easy to program
2. Highest payload, widest work envelopeand fastest axis speeds in class
3. Increased reach and wrist inertia improvethroughput and quality
4. Single robot -to-controller cableconnection enables fast setup
5. Proven torch cable reliability; backedby industry's first two-yeartorch cable warranty

Features:

1. Slim, fast, six-axis AR70O weldingrobot achieves unrivaled weldingperformance and productivity.

2. Optimized acceleration/deceleration control for all robotpositions for faster cycle times.

3. 8 kg payload supports a wide variety of sensors and torches.

4. Slim profile design allows closeproximity placement of robots forhigh-density workcells.

5. High allowable moment and inertiaratings provide substantial wrist rigidity and consistent weld quality.

6. Slim wrist and base axis radius forreduced turning interference andefficient use of space.

7. Over arm torch setup is ideal for welding small parts with complicatedangles and in tight places.

8. Internal airlines and I/O harness enhance cable reliability foraccessories.

9. Single power and control cable reduces wiring time and increaseswork efficiency.
10. New robot harness design for improved diagnostics andmaintenance.

11. Home position data can be saved without battery connection for easymaintenance.

12. Optional location (bottom) for manipulator cable connectionreduces interference with walls.

13. Easy-to-clean surface for use in harsh environments.

14. Variety of advanced, exclusiveprogramming functions maximizeweld quality and speed.

15· Floor-mounted model is standard.Wall- or ceiling-mounted versionsare available.

16.Compact YRC controller utilizes thelightweight standard teach pendantwith intuitive programming.

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

Specification

Product Name Industrial robot arm YASKAWA AR700 for arc welders 8kg Payload 727mm arm welding robot
Model AR700
Application Arc Welding tasks
Maximum reach 727mm
Maximum payload 8kg
Pose repeatability (ISO 9283) ± 0.02mm
Number of axes 6
Mounting position Floor, Wall, Ceiling
Weight 32 kg
Protection rating IP67
Controller YRC1000 controller/ YRC1000micro Controller

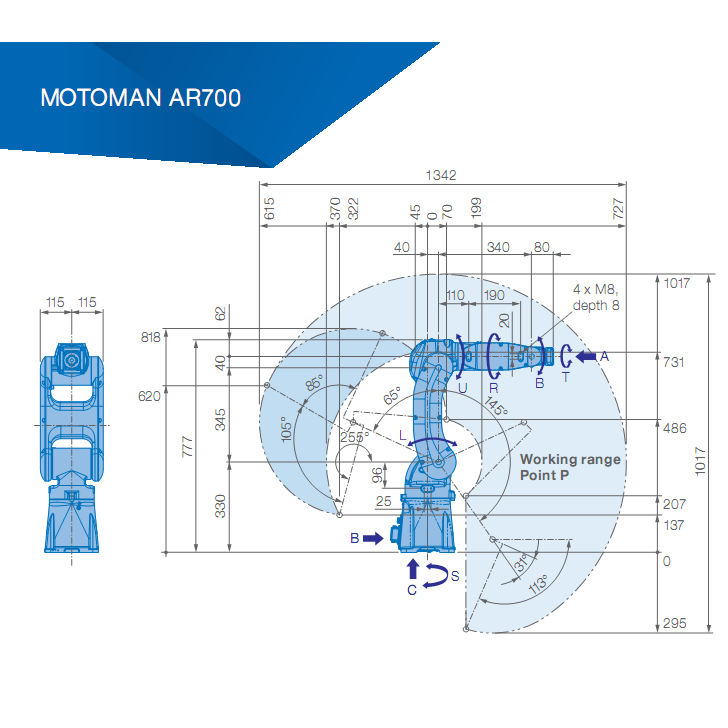

Motion range
S 170° to -170°
L 145° to -65°
U 190° tp -70°
R 190° to -190°
B 135° to -135°
T 360° to -360°

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

AR700 Introduction:

The MOTOMAN AR700 is a compact high-speed 6-axis robot which provides accurate performance to achieve optimal results in extremely difficult conditions and especially for the high demands of arc welding applications.

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

With a payload of up to 8 kg and a working range of 700 mm, this robot enables welding of a broad variety of small workpieces with high quality results. The applicable inertia and axis speeds have been significantly raised, which leads to a "best in class”performance, speed and acceleration.

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

The slim, straight and symmetrical arm design minimizes interference with peripherals even in small workspaces. The MOTOMAN AR700 is easy to clean and well protected (by protection class IP67) against dust or coolants. Cable routing is possible from the side of the robot socket or from the bottom through the base plate (option). This enables an easy and space-saving integration into its environment.

YASKAWA AR700 Second Hand Robot For Arc Welders 8kg Payload

KEY BENEFITS
Compact, fast and accurate
High acceleration
Protection class IP67
Less interferences due to optimized design
Simple integration, installation and maintenance

Applications:

Welding of a broad variety of small workpieces, IP67
